Wall Column Formwork

Stark Speedy

Wall Column Formwork

Stark Speedy

Stark Speedy is a high-performance modular formwork system designed for fast, efficient, and repeatable casting of walls and columns. With a lightweight design, strong load capacity, and a streamlined locking system, Stark Speedy is built for modern construction demands—delivering reliability, speed, and a smooth finish at scale.

Key Features

  • Lightweight and Efficient
    Weighs just 31 kg/m², enabling manual handling without cranes and reducing site labor requirements.
  • High Strength & Performance
    Withstands concrete pressures up to 60 KN/m² for walls and 75 KN/m² for columns.
  • Durable Construction
    Built with cold rolled steel frames, 12 mm film-faced plywood, and 420 GSM phenolic resin, ensuring long-term usage and excellent repetition.
  • Versatile Use
    Suitable for both walls and columns using a single system with adjustable panels and configurations.
  • Simplified Assembly
    Requires only Turned Pins and T Tie Rods for assembly. Panels come with embedded adaptors for push-pull props.
  • Cost Effective
    High repetition rate, low erection time, and minimal maintenance reduce overall lifecycle cost.
  • Long Life Span
    Precision manufacturing and powder-coated finishes make Stark Speedy robust and corrosion-resistant.
ParameterSpecification
Panel Heights2500 mm, 1500 mm, 1250 mm
Panel Widths750 mm, 600 mm
Panel Weight31 kg/m²
Tie Rod Spacing750 mm
Max Column Size (with 4 panels)750 mm x 750 mm
Fixing RotationVertical and Horizontal
Push-Pull AdaptorEmbedded in Panel
Load Capacity60 KN/m² (walls), 75 KN/m² (columns)
Sheet Material12 mm Film-Faced Plywood (420 GSM)
Frame MaterialCold Rolled Steel with powder coating
Assembly HardwareTurned Pins, T Tie Rods
  • RCC Walls (Shear Walls, Core Walls)
  • Square and Rectangular Columns
  • High-Rise Residential and Commercial Projects
  • Infrastructure and Industrial Developments

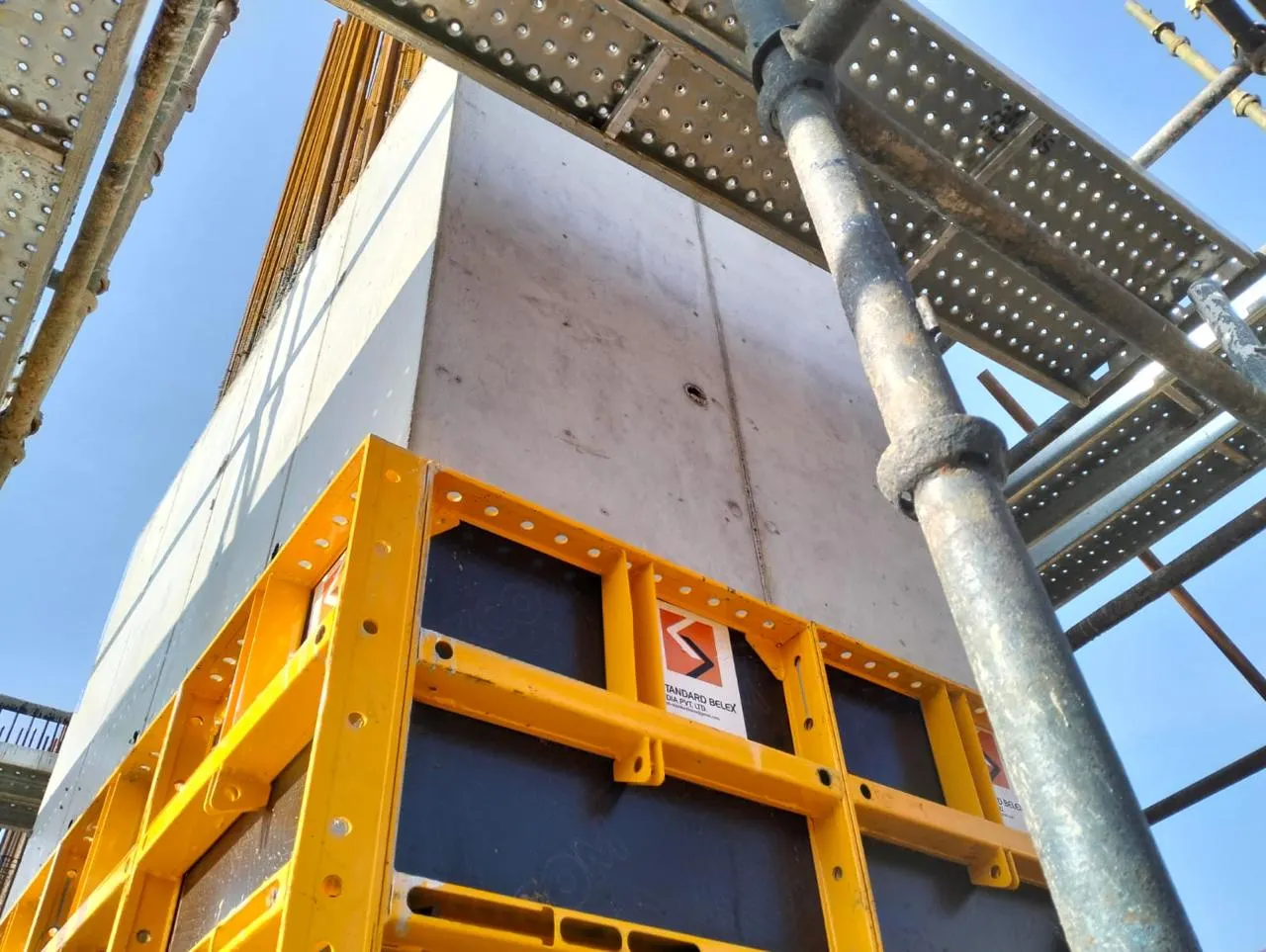

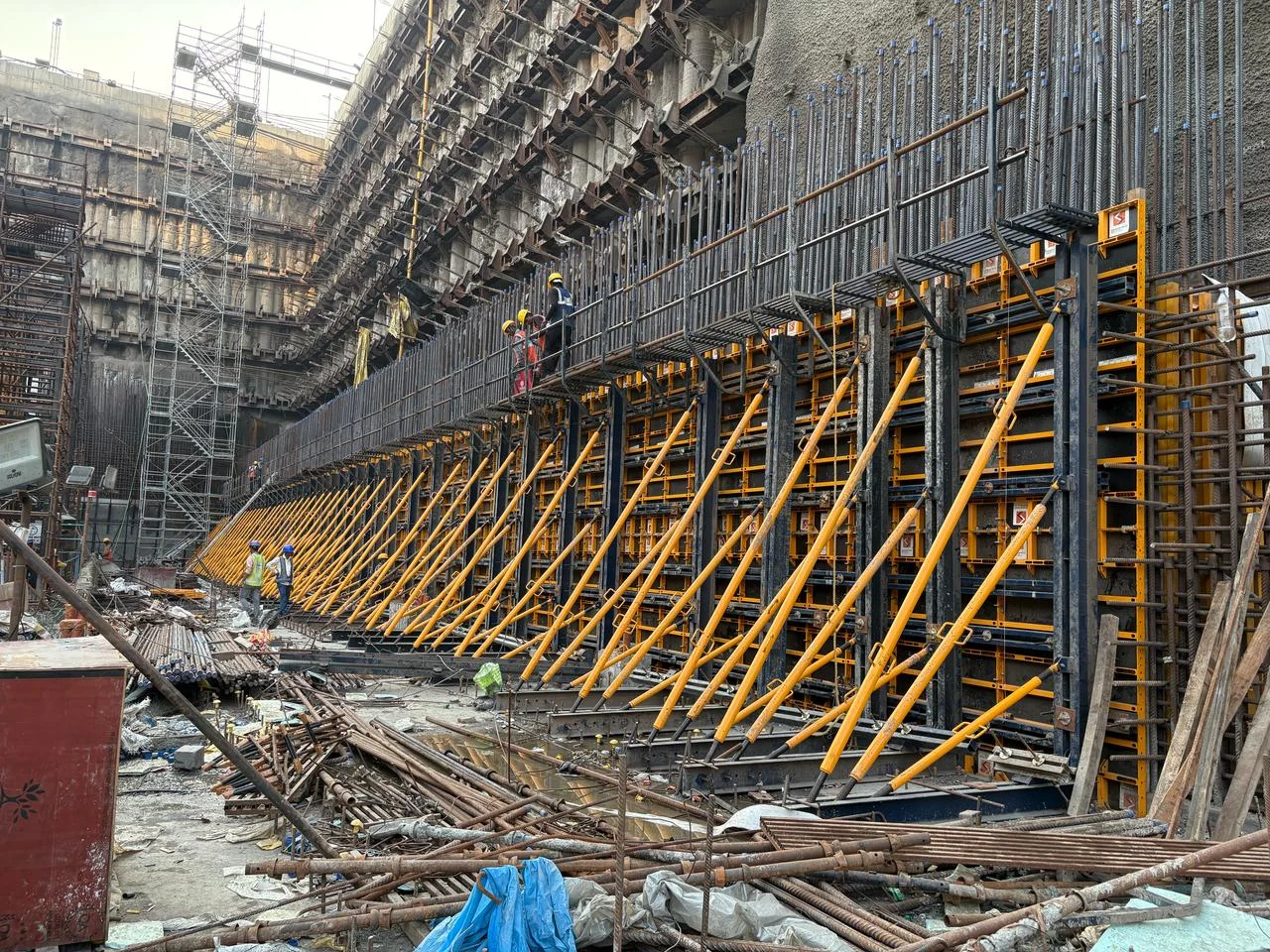

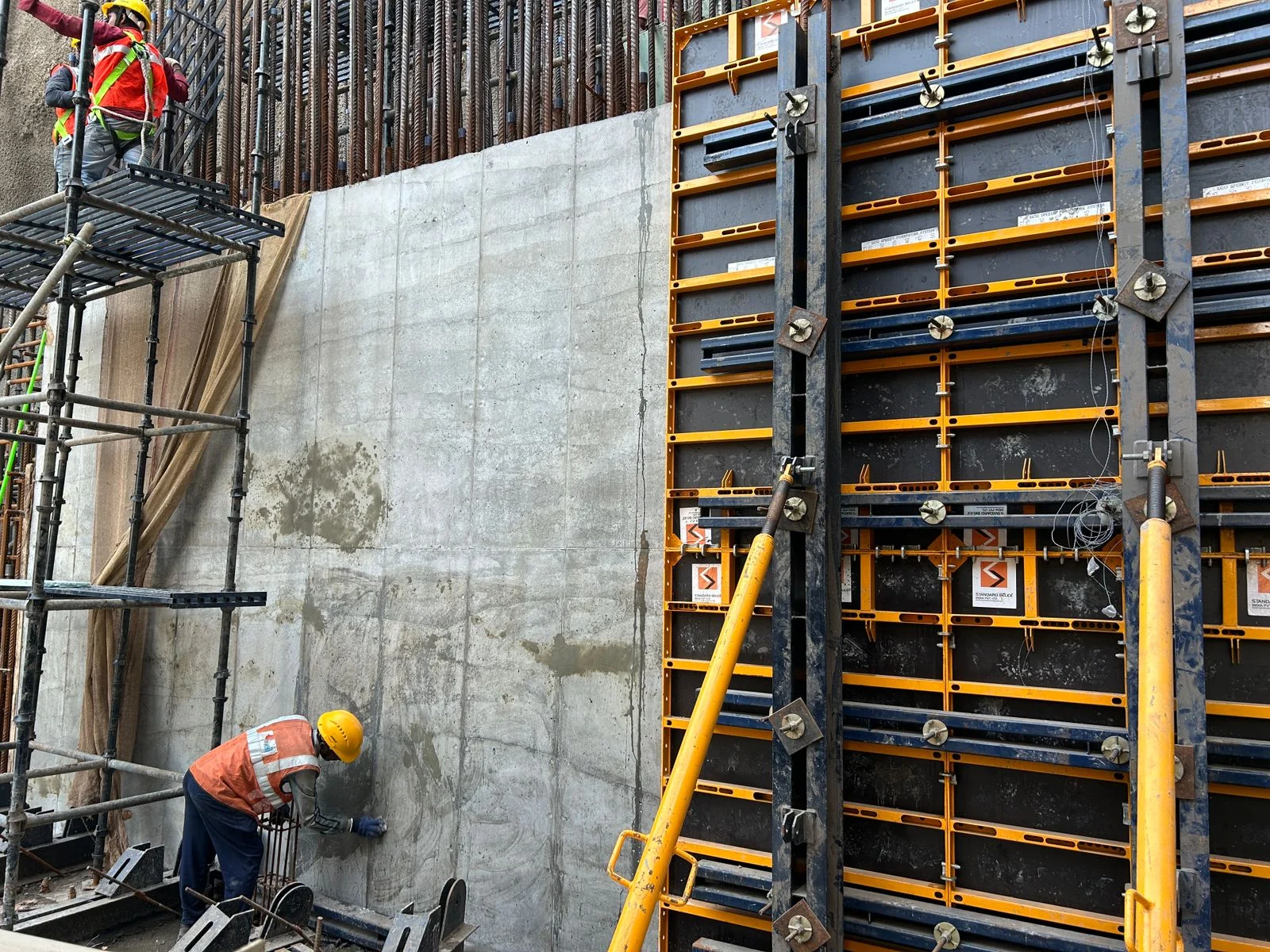

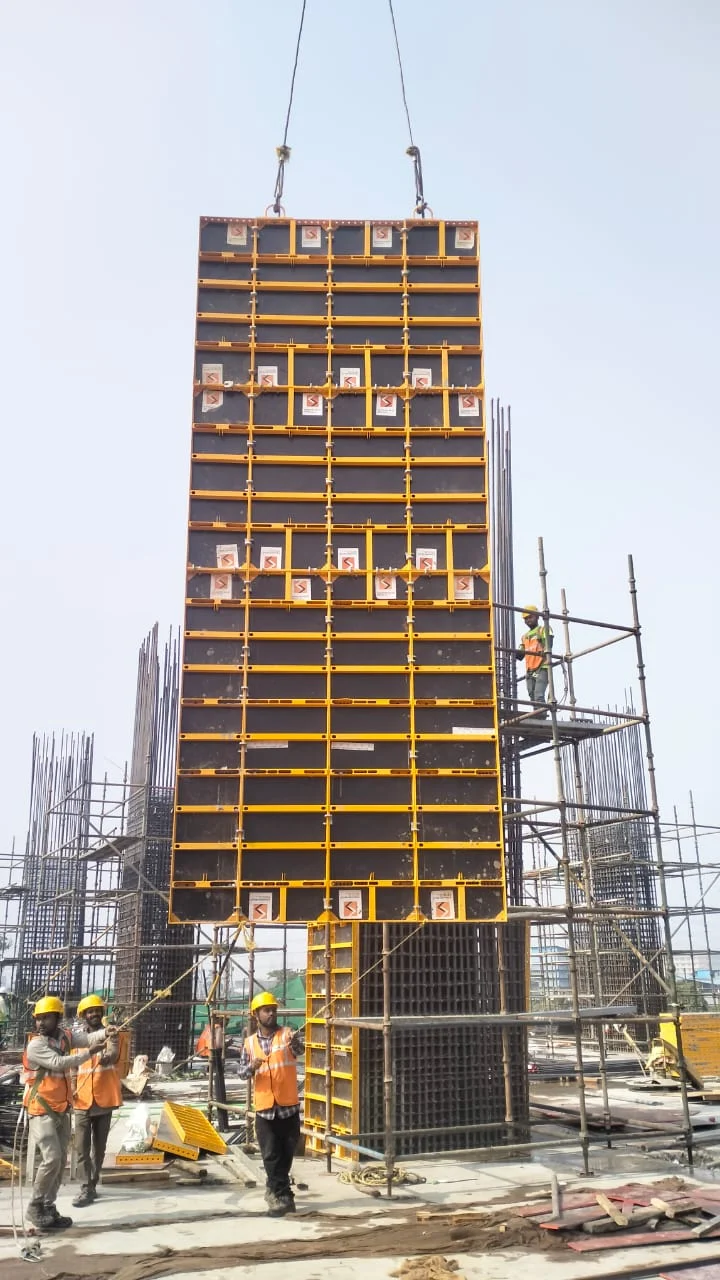

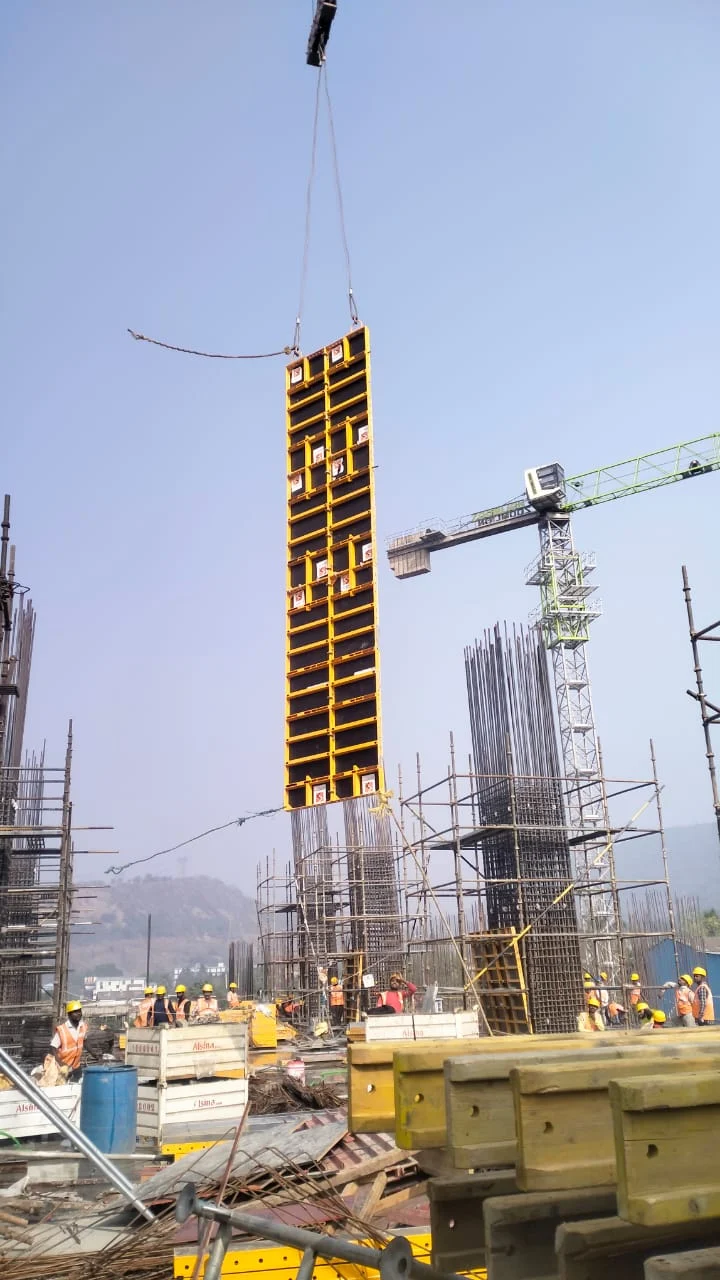

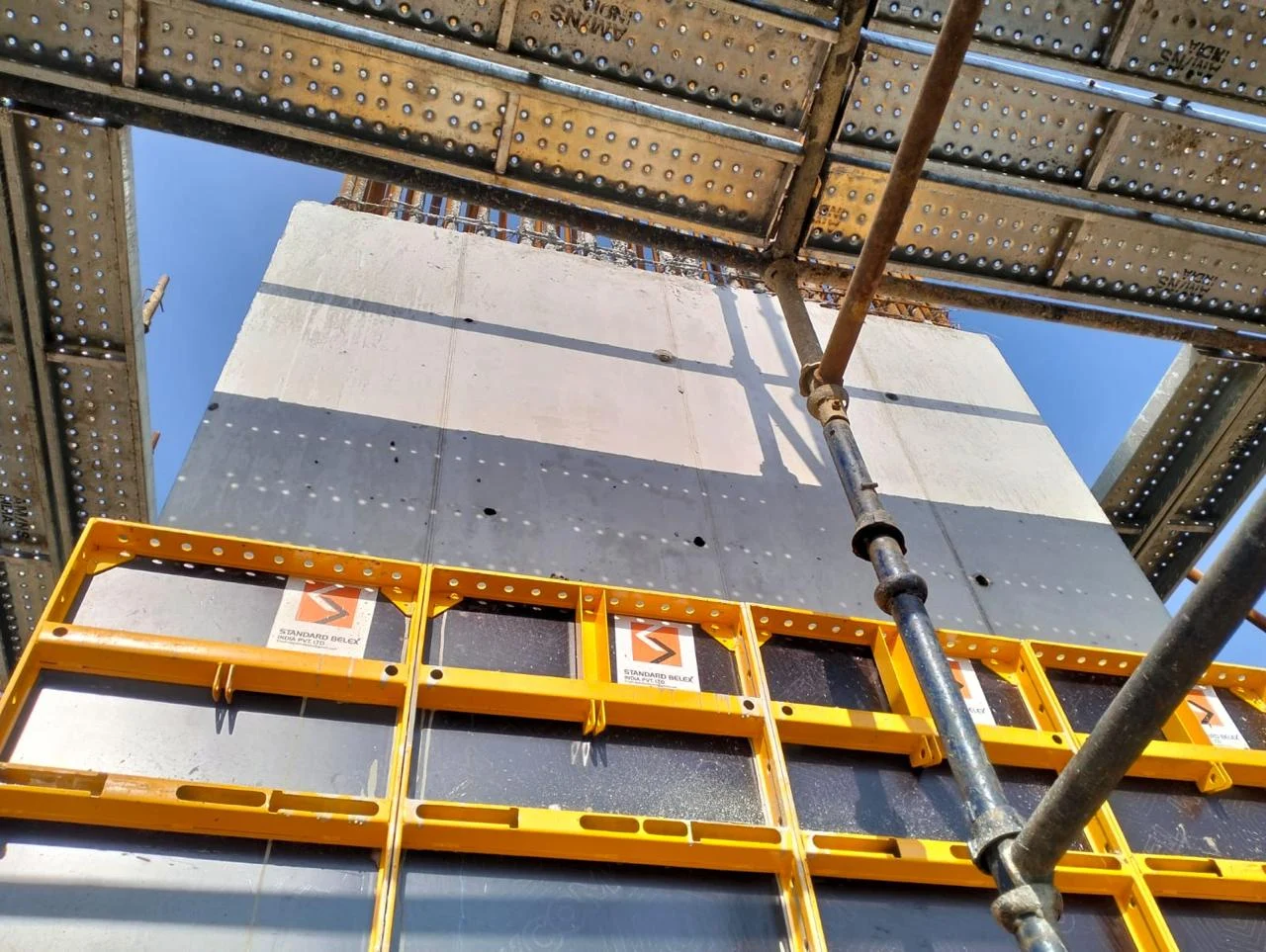

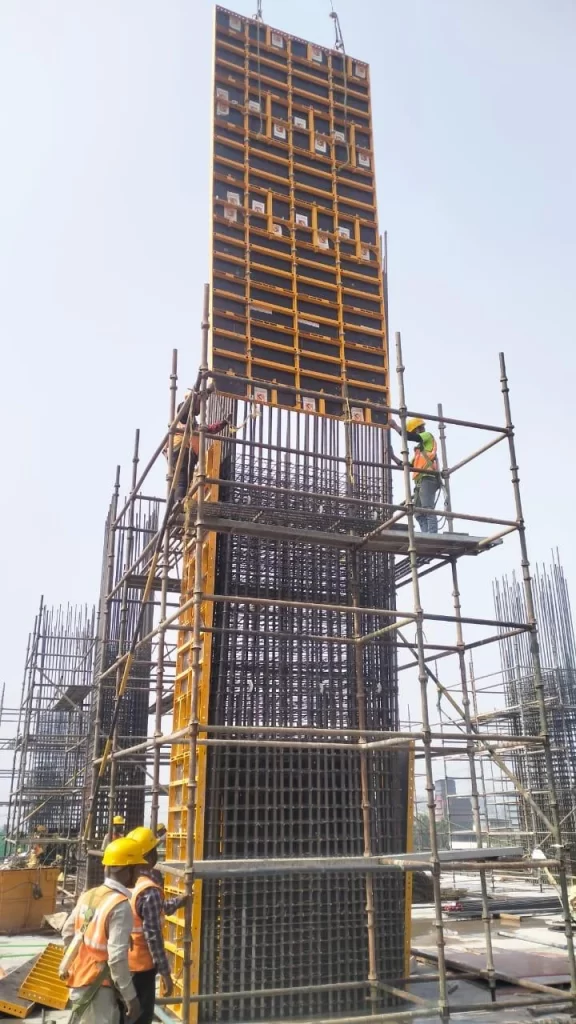

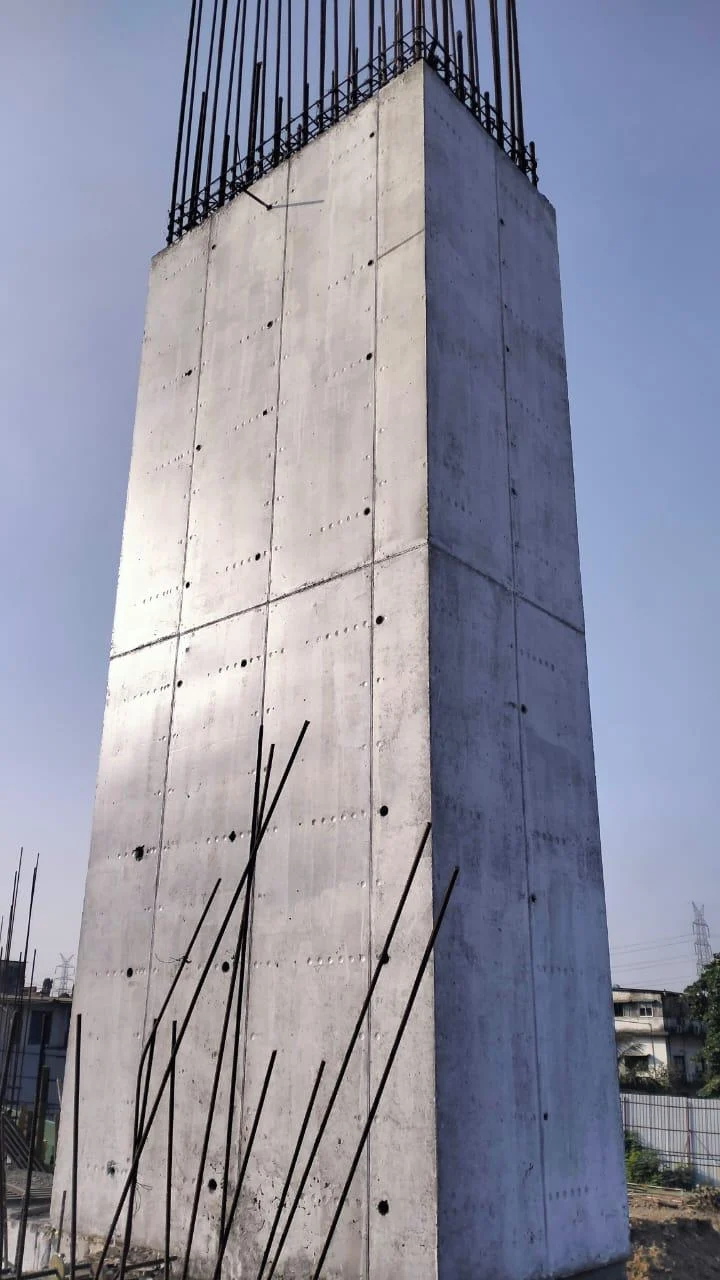

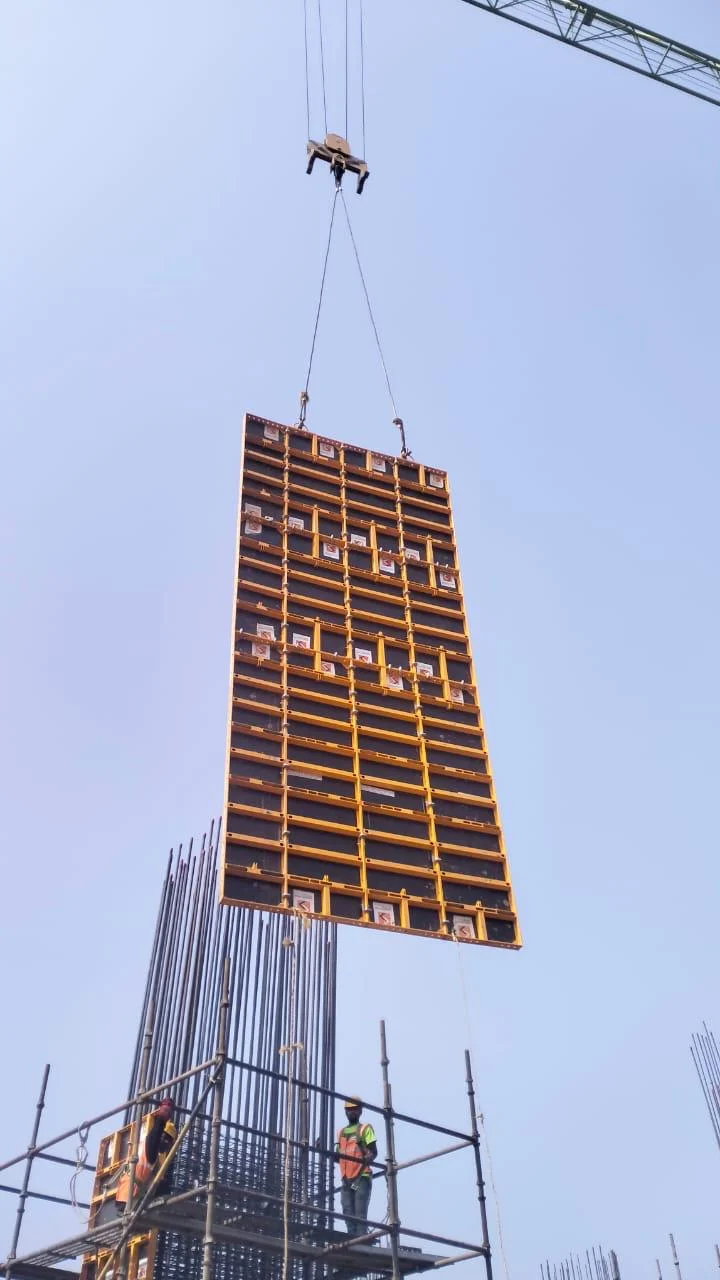

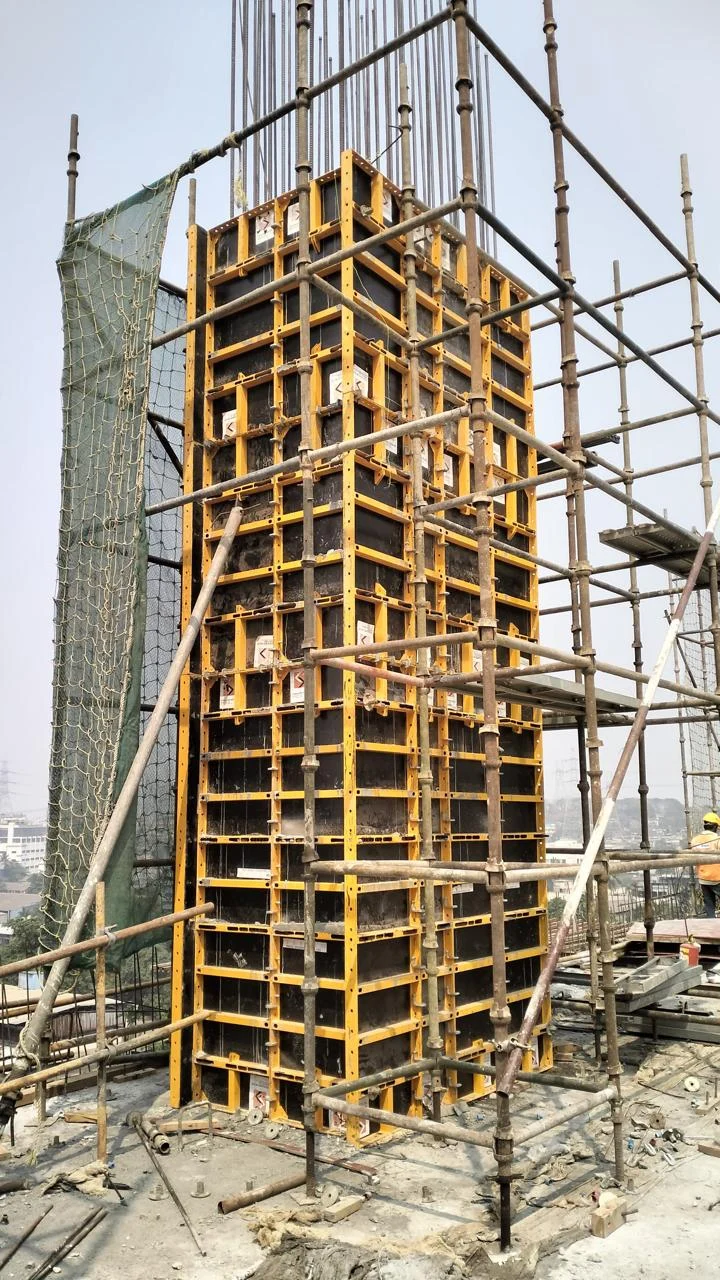

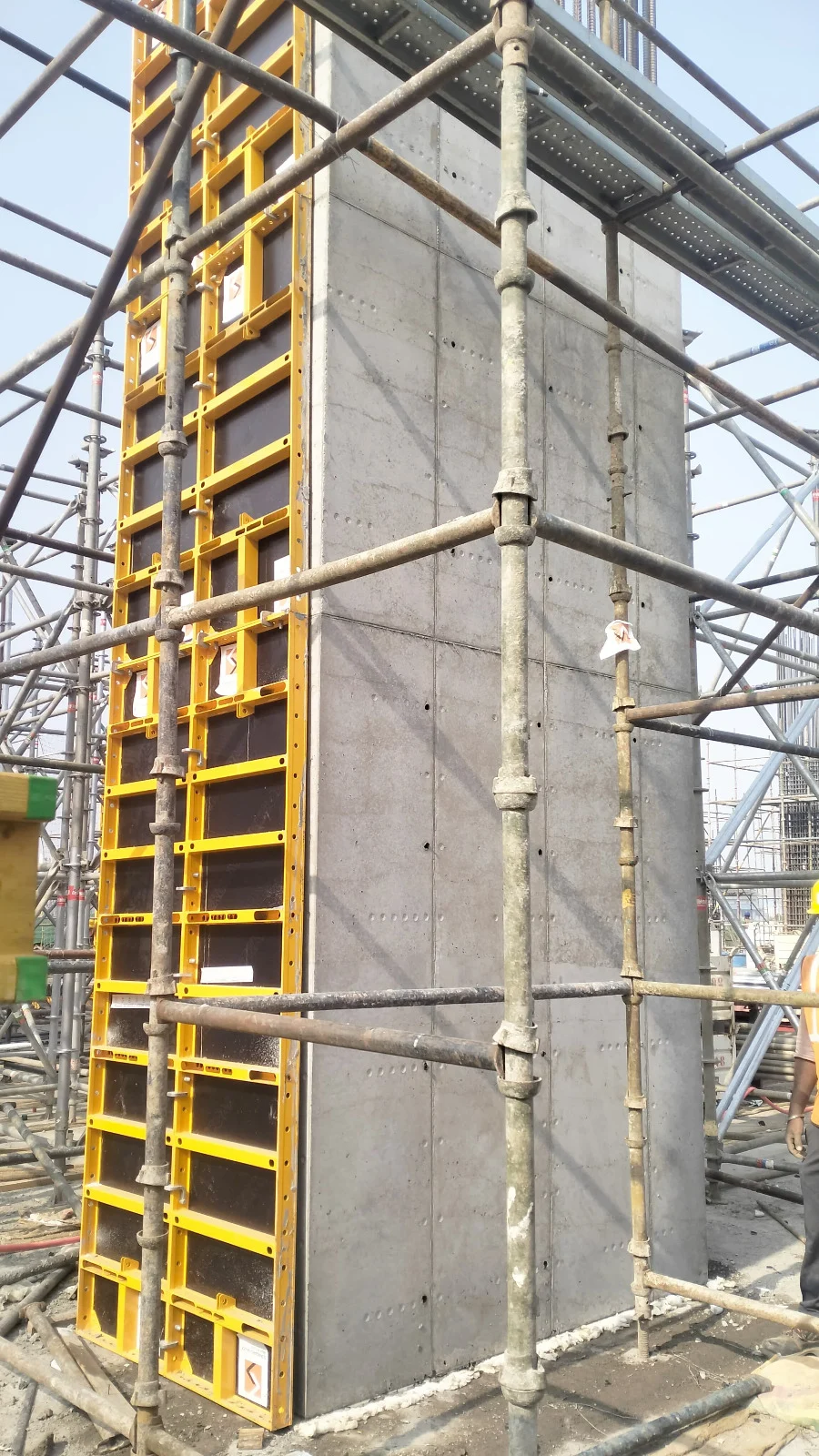

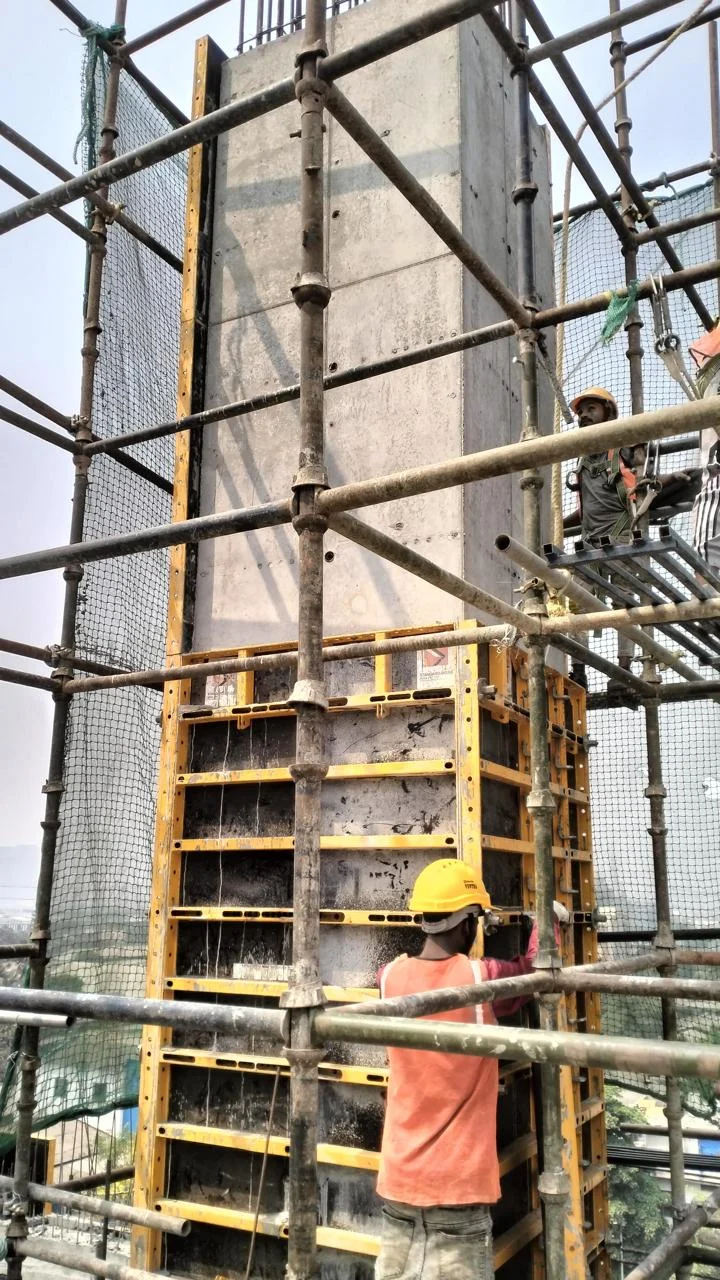

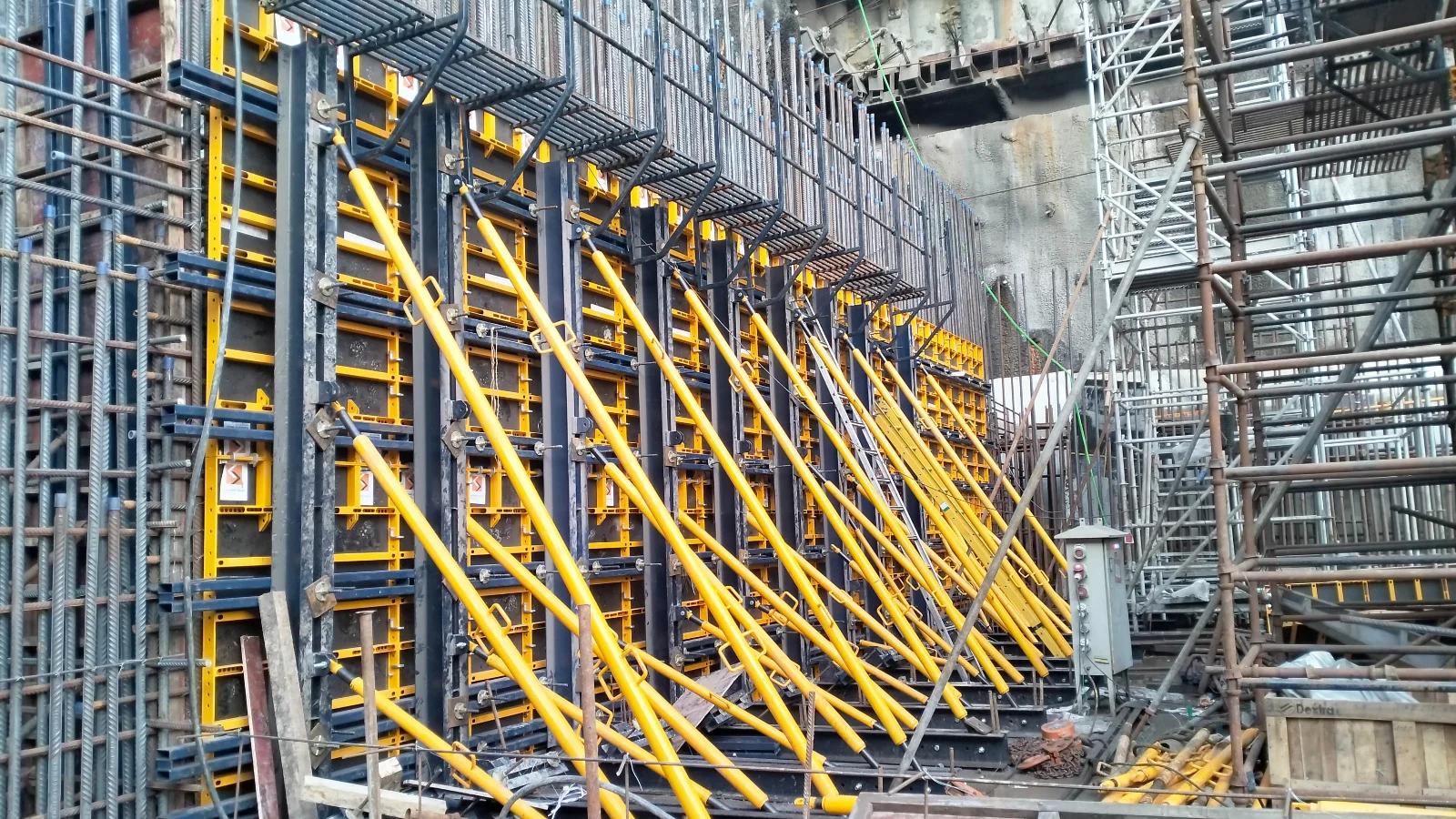

Stark Speedy in Action
